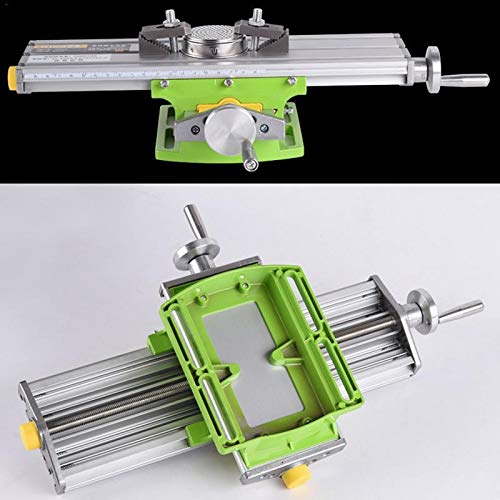

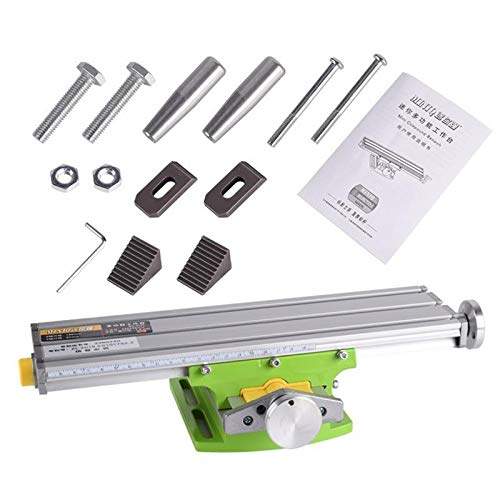

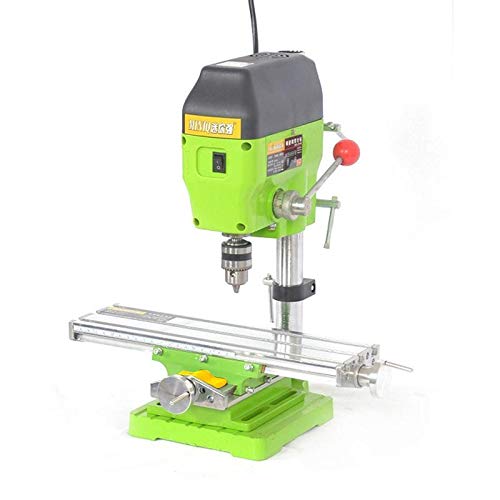

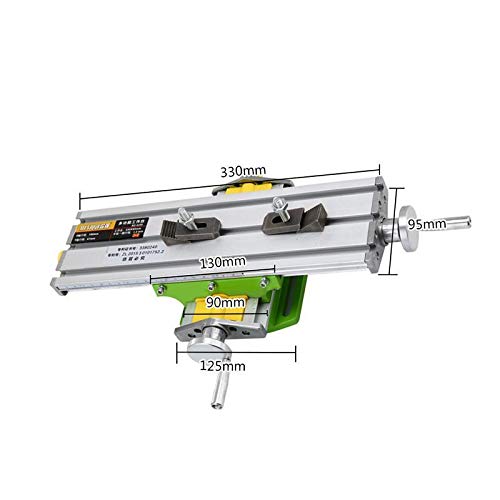

Upgraded Version 6330 Mini Workbench Electric Drill Stand Bench Drill Installation Milling Machine Cross Slide DIY Table Stand Product Descriptions: Material: Aluminum Alloy Size: as is shown in the picture X-axis travel: about 190 mm / 7.48'' Y axis stroke: about 67 mm / 2.64'' Base hole spacing: about 102 mm / 4.02'' Distance between grooves: about 34 mm / 1.34'' Weight: about 2.65kg Accessories list: as is shown in the picture Corresponding screw, M8 nut. Introduction: This workbench is suitable for mini bench drill and drill stand series. It can also be applied to other suitable machines. The workbench is composed of several adjustable dovetail aluminum alloy grooves that guarantee minimal space for movement and ensure accuracy. The workbench has three T-slots on the work surface. The standard size of the groove is 15X8X6mm. The front ruler can be positioned and movable. Zero setting handwheel is 1.25mm for each round. A small compartment is equal to 0.05mm. The size of the workbench surface is 310X90mm and the overall height is 80mm, including two working clips. Notes: 1. The 6330 workbench is upgraded on the basis of 6300. The design of all-aluminum alloy greatly improves the accuracy. 2. The product does not include bench drill.
